ROGUE Excalibur VMC

Exaclibur Mini CNC MIll

Innovate your ideas, prove your game changing concepts, start your own production line with

the Rogue Excalibur Vertical Machining Center!

  • Cut plastics, bronze, copper, stainless, steel, Aluminium and more.

  • Small foot print for home workshop / hobby use.

  • Has many features of a large industrial machine, making growing into a bigger machine easy.

    • Hardware controller.

    • Flooded coolant.

    • Automatic tool change.

    • Pendant.

  • Single phase power plug for convenience.

  • Highest feed rate/rapid rate of its class, for fast cut times.

  • 2x the cutting power of competing products.

The Excalibur Premium Package includes the flood coolant enclosure, power drawbar, automatic tool changer, TomaTech TAC2000 hardware motion controller, G2 Drive amplifiers, automatic lubrication system, and more.

Optional accessories include:

Vacuum fixturing

Milling vice

4th Axis


$26,995 +gst

Finance Available

230v 50hz 20amp, straight out of the wall in the shed power*

Small form factor 1500x1100x1900mm

Cuts almost anything (steel, plastic, aluminium, stainless, brass, bronze etc)

Powerful AC Servo Motors (XY 400w, Z 750w)

BT30 Spindle

8000RPM

400x200x350 XYZ Travel

590x178 table size

6000mm/min cutting

12000mm/min Rapids

Rigid tapping

Automatic Tool Changer

Flood coolant

1000x1500x2200mm DxWxH

900kgs

Finance available

*may require an electrician.


Tech Specs

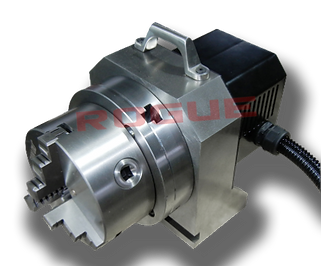

Harmonic 4th 1.png

rotary axis

Optional extra: Harmonic Drive 4th axis.

(click image for details)

side view.png
TAC2000 Motion controller.jpg
G2 driver banner2.jpg

New Generation digital signal processor and intelligent module.

Advanced position accuracy algorithm.

Integrated smart PID and PDFF controller.

Supports load monitor, torque feed forward compensation for enhanced dynamic response ability.

Comparison 2.jpg
